PE plastic pipe extrusion machine from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ-65/33

Production Capacity: 60 Set/Sets per Year

Delivery Date: 60 working days from the do...

Use: Others

Brand Name: shunlida

screw design: single-screw

Automatic grade: fully automatic

Extruder: SJ-65/33

output: 250kg/h

inverter: ABB

Means of Transport: Ocean

Packing: Packed in wooden case

Plastic Type: PP/PE

Shaft Design: Single

Power: 130

Application: pipe

plastic processed: PE

pipe diameter: 16-110mm

Production max. rate: 20m/min

Dimension(L*W*H): 26m*1.8m*2.5m

1.Pipe Range:16-110mm.
3.Output:250kg/h.
2.Extrusion speed:15m/min.
4.Total installed Power:160kw
Specially designed for pipes extrusion

Introduction For Application&Advantage

1 This extruder is a kind of extruding machine for PE/PPR Pipes and PVC profile production line. The auxiliary extruder can extrude all kinds of mark lines on the surface of the pipe and profile.It also can be used for pelletzing extrusion line.

2 The system is controlled by dedicated computers. According to customer requirements, most reasonable screws can be configured to achieve optimal plasticization and logistic quality.

3 All the screws are processed by high-precision special NC screw milling machines to ensure high consistency extruding performance.

4 The most advanced variable pitch and depth screw design technology has been firstly introduced, making screw shearing and compression milder and itself more appropriate for practical requirement.

5 The special design of distribution cabinet enlarges thrust bearing and adopts original bearings, guaranteeing the drive's long service life and the bearing of larger extrusion capacity.

6 The electrical appliance system maximally adopts imported original parts and has many failure alarm functions, reducing failures and facilitating troubleshooting.

7 Special design of cooling system enlarges the heat radiation area and quickens the cooling with the temperature precision up to ±1°C.

.	Name	Parameter

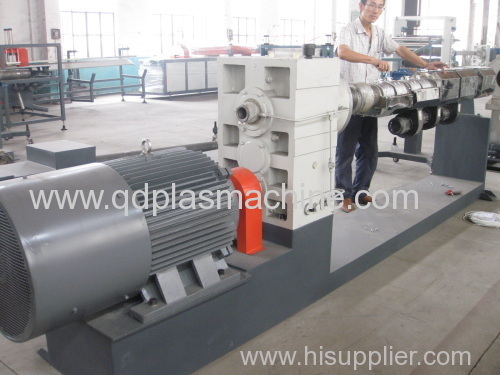

Part 1	Single screw extruder	SHUNDACO65/33
1.1	Main motor	45kw
1.2	Frequency inverter	Main motor(Equipped with strong air cooling) speed adjustment adopted ABB,frequency conversion and speed governing adopted Siemens AC Contactor.
1.3	Reducer	Gear and the component of axle are made of alloy steel. Gear have been processed by nitriding,quenching and griding. The accuracy of gear is ISO6. The hardness of gear surface is HRC56-62.
1.4	Diamter of screw	65mm
1.5	Ratio:L/D	33:1
1.6	Rotate speed of screw	5-70r/min
1.7	Material of screw	38CrMoALA and processed by high temperature nitriding. Nitriding depth:0.5-0.6; Hardness(HV):740-940; Surface roughness≤0.8um
1.8	Up-down moving type	motor control
1.9	Power of motor	0.37kw
1.10	Material of barrel	38CrMoALA and processed by high temperature nitriding. Nitriding depth: 0.6~0.7. Hardness(HV)Beyond 860, Surface roughness≤1.6um.
1.11	Thermocouple	K type
1.12	Temperature Controller	Import temperature controller :Control barrel heating temperature ±1°C, Heating used cast aluminum heating ring,use stainless shield outside
1.13	Heating power and zone	15kw/5
1.14	Barrel heating zone	Heating used cast aluminum heating ring,use stainless shield outside.
