pe pipe extrusion machine

Payment Terms: T/T,L/C
Place of Origin: Shandong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SJ65x33
Production Capacity: 60 Set/Sets per Year
Delivery Date: 60 working days from the do...
Use: Others
Brand Name: shunlida
screw design: single-screw
Automatic grade: fully automatic
motor: SIMENS
output: 150-800kg/h
inverter: ABB
Means of Transport: Ocean
Packing: wooden cases and wooden pal...
Plastic Type: PP/PE
Shaft Design: Single
Power: 330
Application: pipe
plastic processed: PE
pipe diameter: 16-800mm
Production rate: 0.1-10m/min

SJ65/33 HDPE pipe extrusion line
1.New energy--saving technology
2.High output extruder
3.High accuracy
4.Long using life and good performance

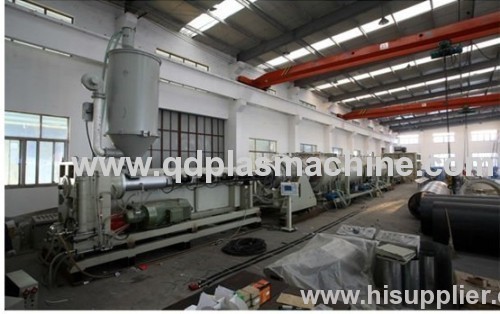

PE HDPE water and gas pipe extrusion machine
PE HDPE water and gas pipe extrusion machine

OMPONENTS AND FEATURES:
PE Pipe Extrusion Machine is applied for manufacturing PE pipes with different pressure classes needed in field of petrol gas, agriculture, architecture, telecom communication, etc..
The complete extrusion consists of following items:
2.Co- extruder: manufacturing marking line on pipe or multilayer of pipes
3.Die head
4. Vacuum tank: due to diameter, it can be designing of single, double vacuum chamber
5.Cooling tank: due to diameter, the numbers of cooling tank can be one, two or three
6. Haul-offs: due to diameter, it can be designing of double, three, four, six, eight, ten, twelve caterpillars
7.Cutter: due to diameter, it can be designing of no-scraps cutter or planetary cutter
8.Coiler/ unloading rack.
Technical parameters:
Model
Screw diameter
(mm)
L/D
Pipe range
(mm)
Main motor power (kw)
Total power
(kw)
Line length
(m)
PE-63
65mm
33:1
16-63
37
80
24
PE-110
65mm
33:1
75-110
55
110
30
PE-160
75mm
33:1
90-160
90
150
32
PE-250
75mm
33:1
110-250
110
200
42
PE-315
90mm
33:1
160-315
160
240
44
PE-400
90mm
33:1
200-400
185
300
50
PE-500
120mm
33:1
250-500
280
350
56
PE-630
120mm
33:1
315-630
280
480
56
PE-800
150mm
33:1
400-800
315
550
72
