pe pipes poduction line plastic machine from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: sj series

Production Capacity: 60 Set/Sets per Year

Delivery Date: 45working days after receiv...

Use: Others

Brand Name: shunlida

screw type: single-screw

cutting mehod: saw and chip-free

frame shape: "H"

temperature control system: automatic and accurate

extruder power (Kw): 55-280Kw

Means of Transport: Ocean

Packing: wooden carton or standard p...

Plastic Type: PP/PE

Shaft Design: Single

Power: 80-300Kw

feeder structure: sprial throat type

haul-off caterpillars: 2-12

extruder performance: material melting

electrical operation method: PLC

gearbox design: high torsion

The line adopts single screw extruder which can process all kinds of plastic products with auxiliary machines concerned,such as pipes,film,stick,plate

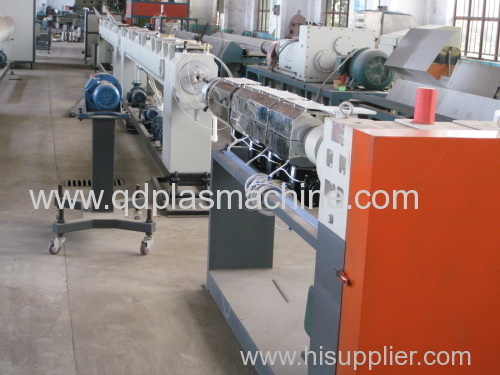

Plastic pipes production line

Process flow:

Granules mixer →Vacuum feeder → Hopper dryer → Main Single screw extruder → Co-extruder→ Mould → Vacuum calibrator → Spray cooling tank → Printer → Haul off → Cutter → Stacker

Characteristics

SJ Series Single Screw Extruder can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on

Machine Characteristics

1. The optimum spiral structure feeding throat highly improves the output of extruder

2. Accurate temperature control system ensures materials melting performance

3. Unique screw design achieves better plasticizing and high quality products

4. Precisely designed gearbox with a high torsion guarantees stable running

5. "H" shape frame to decrease vibrating of extruder

6. Advanced PLC operation system realizes synchronization and automation

7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks

8. Offer stable haul-off unit with 2-12 caterpillars

9. Provide saw & chip-free cutting options

10. Low energy consumption, excellent performance, and easy maintena

Technical data :

The pipe extrusion line is capable of manufacturing different sorts of pipes such as PPR cold/hot water pipe and PE silicore pipe. This production line can also produce monocolour pipe with one extruder and multicolour pipe with co-extrusion die head.

Model	Pipe diameter	Main extruder	Speed(r/min)	Output	Installed power	Center height	Dimension
PE-63	16mm-63mm	SJ65/30	20-150	150kg/h	85kw	1000mm	35X3X2m
PE-110	20mm-110mm	SJ65/33	20-150	200kg/h	110kw	1000mm	38X3.1X2.2m
PE-160	50mm-160mm	SJ75/33	20-130	350kg/h	125kw	1000mm	38X3.1X2.2m
PE-250	75mm-250mm	SJ75/33	20-130	350kg/h	180kw	1000mm	40X3.2X2.4m
PE-315	110mm-315mm	SJ75/33	20-130	350kg/h	260kw	1100mm	42X3.2X2.4m
PE-450	200mm-450mm	SJ90/33	20-110	450kg/h	325kw	1100mm	52X3.3X2.6m
PE-630	315mm-630mm	SJ120/33	20-90	850kg/h	480kw	1200mm	60X3.5X2.8m
PE-800	400mm-800mm	SJ150/33	20-75	850kg/h	600kw	1300mm	68X3.6X3m
