PVC fiber reinforced hose extrusion machine
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
SJ45/30,65/30
Production Capacity:
5 sets per month
Delivery Date:
Within 30 working days afte...
Use:
Others
Brand Name:
shunlida
Processing type:
Extruding machine
screw design:
single - screw
pipe diameter range:
16-50mm
auxiliary machine:
mixing unit , PVC pelletize...
Pipe production line::
braiding pipe production li...
Means of Transport:
Ocean
Packing:
Packing in film or woodcase
Plastic Type:
PVC
Shaft Design:
Single
Power:
36Kw
Plastic processed:
PVC
main motor power:
7.5-15Kw
output capacity:
30-120kg
warranty period:
one year
usage:
gas ,liquid conveyor

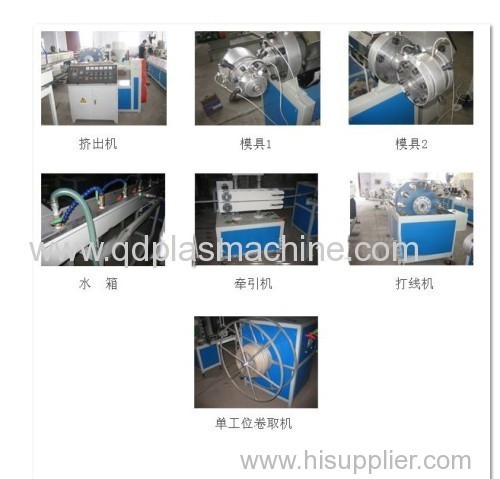

This PVC Fiber reinforced pipe extrusion line consists of extruder, water-spraying tank, hauling-off unit, fiber-rolling unit, coiler, etc.
Description:
PVC twisted reinforced pressure tube extrusion machine also called PVC pipe, plastic mesh snakeskin tube, PVC draiding pipes etc, suitable for pressure, corrosive, sound insulation, adiabatic requirements for the gas, liquid conveyor, widely used in machinery, mining, petroleum, chemical, agricultural irrigation, building and civilian (solar water heater, gas cylinder), etc. The whole equipment configuration: mono-screw lining extrusion system, cooling device, haul-off, braiding machine, mono-screw outer extrusion system, cooling device, automatic stacking system. Achieving fast extruding and winding uniform reactive, can configure corresponding mould can also manufacture various specifications of soft special-shaped steel tubes.
product detailsPVC fibre reinforced hose machine mainly consists of extruder, spray water tank, traction engine, kintting machine and reeling machine.PVC fibre reinforced hose extrusion machine is suitable for producing PVC single layer transparent hose as well. Technical Parameter of PVC fibre reinforced hose extrusion machine Model 1 Diameter:6-16mm Extruder:45/30 single screw extruder Screw diameter:45mm L/D ratio: 30:1 Motor power:11kw Total power:28kw Model 2 Diameter:16-50mm
Extruder:65/30
single screw extruder Screw diameter:65mm L/D ratio: 30:1 Motor power:18.5kw Total power:38kw If you are interested in PVC fibre reinforced hose machine,Dia.10-50mm.pls kindly contact us.We will supply PVC fibre reinforced hose machine with competitive price,excellent quality and perfect after-service to you and your custoemrs.
technical parameter:
| model | L/D | screw structure | material | screw diameter(mm) | main machine power(Kw) | total power(Kw) | central height(mm) | diameter range(mm) | practical area(square meter) |
| 45x30 | 30:1 | separate | 38CrMnAl | 45 | 7.5 | 26 | 1000 | 6-20 | 9x2.5 |
| 65x30 | 30:1 | separate | 38CrMnAL | 65 | 15 | 36 | 1000 | 16-50 | 9x3.2 |
