PVC plum blossom pipe production line from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJSZ series

Production Capacity: 60 sets every year

Delivery Date: within 45 workding days fro...

Use: Others

Brand Name: shunlida

pipe diameter range: 32mm-60mm

screw material: 38CrMoAIA

application: telecommunications

power type: electricity heating

pipe material: PE/PVC

Means of Transport: Ocean,Air

Packing: plastic film and wood palle...

Plastic Type: PVC

Shaft Design: Double

Power: 76Kw

screw type: twin screw

barrel material: 38CrMoAIA

processing type: according to CE standard

type: pipe production line

Processing type: Extruding machine

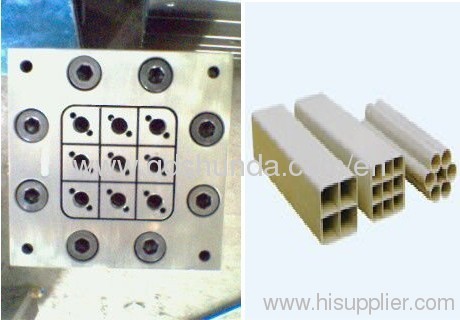

-PVC multi-hole plum blossom pipe extrusion line
-the machine structure is reasonable, convenient to operation
-plastic machinery
-extruder

Application: the rapid development of information industry, so that communication cables, fiber optic cable laying is growing rapidly, communication cable, cable sheathing tube market demand is rising sharply. Because of its porous pipe threading convenience, each interval, a high resistance to stress, frost and strong, and good sealing advantages of being widely adopted.

SJSZ 51/105 PVC Perforated pipe production line uses specially designed porous mold, flow rational and energy-saving efficient .

The Main Technical Specifications
Model	SJSZ-51/105
Raw material	PVC
Extruder (mm)	51/105conical double-screw
Range f Pipe Dia.	Five-aperture, seven-aperture
Installed capacity(Kw)	76
Average Energy Consumption(Kw)	50
Dimension(LXWXH)(Approx. mm)	20000×2200×2100
Total weight(Approx. Ton.)	7
