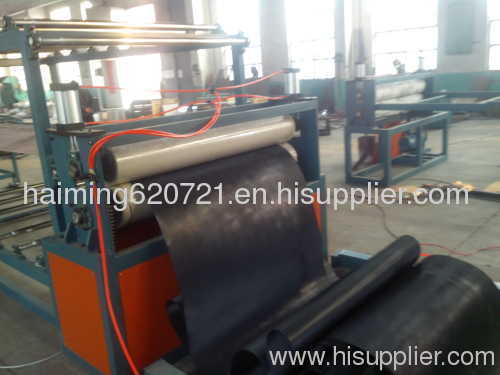

Our company's single layer
sheet production line can produce various materials sheet ,for example PU, ABS, PP, PE, PS , the equipment has the following advantages:
Screw adopts special mixing function and high plasticizing capacity design.
Coat-hanger die use a special double flow design which allows more precise adjustment to sheet thickness.Temperature control of plus or minus 1 ℃ can accurately control the plasticizing process and sheet thickness.
Three Roll-ray machine adopts vertical lifting method.Sheet thickness control with a two-way roller
screw adjustment and precise control of sheet thickness can be adapted .
The roller temperature control system can precisely control the temperature ensures
sheet thickness uniformity
Width:600-1500mm
Thickness:1.5-3mm
Capacity:200-300kg/h
Application : Printing ,
Vacuum Forming ; Stationery , Package Medicine , Bags
PE plastic sheet Feature
1.High transparence: Superior transparent and aging resistance
2.Impact resistance: anti-compact is higher than normal glass.
3.Flame Retardant
4.Heat resistance
Pe Plastic sheet Machine Main equipment List:
Main Extruder SJ90/33
Hydraulic net-changer by Fuji Times;
Die mould
Three Rollers Calendar, Roll Temperature Controllers;
Cooling Frame;Siding Trimming;
Haul off Units;
Dual Position Winder
