PE plastic pipe extrusion line from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SJ-90x33

Production Capacity: 60 sets every year

Delivery Date: within 60 working days from...

screw type: single screw

extruder type: single screw extruder

processing type: extruding machine

automatic grade: optional

voltage: 380V/50HZ

Means of Transport: Ocean,Air

Packing: plastic film and wood palle...

pipe diameter range: 16mm-630mm

screw material: 38CrMoAIA

application: water , energy , electricit...

power type: electricity heating

certification: CE, ISO9001 passed

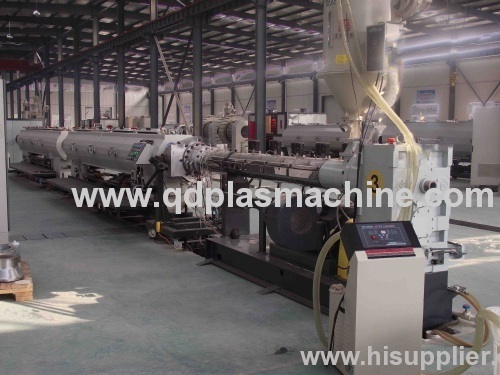

PP Pipe production line
1. Material:For PE, PPR, PP
2. Application:For Water, Agriculture, Gas pipe
3. Diameter:16-630mm

PPR/PE series pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, stacker, etc. Single screw extruder and haul-off unit have applied A/C frequency inverter, both vacuum pump and driving motor have applied excellent famous brands. The haul-off unit includes two-claw type, three-claw type, four-claw type, six-claw type, etc. Scraps free cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable. The production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe, and core layer foaming pipe, etc. It can also produce PP, PE,ABS,PPR,PEX, silicon core pipe and pipe material of other material. The planetary cutting machine is fully automatic computer digital control; it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.

Main technical parameters:

pipe diameter(mm)	16-23	20-125	160-250	200-500		250-630
main extruder	SDSJ-45/33	SDSJ-65/33	SDSJ-90/33	SDSJ-90/33	SDSJ-120/33	SDSJ-120/33
die head	single outlet	single outlet	single outlet	single outlet	single outlet	single outlet
down-stream equipment	GF-63	GF-125	GF-450	GF-500	GF-500	GF-630
total power (kw)	50	89	130	130	250	300
