PE silicon-core pipe making line from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean

Packing: wooden carton or standard p...

Plastic Type: Others

Shaft Design: Single

Power: 120kw

Production Capacity: 60 Set/Sets per Year

Delivery Date: 50 working days after recei...

Use: Others

Brand Name: shunlida

capacity: 310kg/h

1.first class pipe die was designed with mane years experience
2.perfect pipe vacuum sizing ystem
3.controlled independently unitarystructure

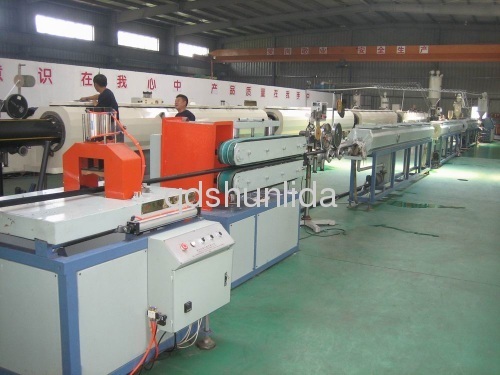

The making line

1.Extruder of pipe line: DC speed regulator and high performance BM type screw, spiral co-extrusion die-head.

2.Vacuum calibrator of PE pipe line: vacuum negative pressure calibrating and circulating spraying cooling system made of 24 meter stainless steel.

3.Haul- off unit of plastic pipe line: equipped with an automatic clamping system, frequency conversion for speed controlling and stable haul-off.

4.PLC control system of plastic pipe line, realize programmed control of the temperature, extrusion amount,length set, haul-off and automatic printing.

Technical parameter:

Model
Extruder diameter	90MM	45MM	30MM
L/D ratio	30:1	30:1	25:1
Output	260kg/h	40kg/h	10kg/h
Installed power	120KW
Specifications	20-63mm
Haul-off speed	6-14m/min
