Product Description
Machine Characteristics
1. The optimum spiral structure feeding throat highly improves the output of extruder
2. Accurate temperature control system ensures materials melting performance
3. Unique
screw design achieves better plasticizing and high quality products
4. Precisely designed gearbox with a high torsion guarantees stable running
5. "H" shape frame to decrease vibrating of
extruder6. Advanced PLC operation system realizes synchronization and automation
7. Adopt automatic water temperature & level control and special independent filters on both vacuum and cooling tanks
8. Offer stable haul-off unit with 2-12 caterpillars
9. Provide saw & chip-free cutting options
10. Low energy consumption, excellent performance, and easy maintenance

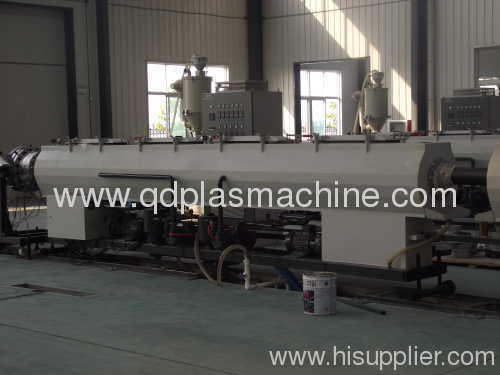

PE pipe machine plastic machine features:
PE PIPE Machine is a kind of
plastic machine which is used to produce all kinds of PE pipes.Because PE pipes has good features of insulation resistance and corrosion resistance , it's application is widely around the world.Acccording to the structure of PE material, the density, PE is divided into HDPE(also calls High Density Low pressure polyethylene), MDPE ,LDPE,UHMWPE,modified polyethene(PEX,CPE)
PE pipe extruder machine can be divided into two classifications:
HDPE pipe extruder machine and
PEX pipe extruder machine
HDPE pipes are often used as the water supplying , fuel pipes ,the pipe diameter is usually from 50mm to 500mm.
PEX
pipes The main raw material is HDPE, initiator, cross-linking agent, catalyst and other additives, can be added according to the modified.
315-630mm Plastic pipe machne technical data| Main units | Vacuum calibration tank | Spraying cooling water tank | Four caterpillars haul-off units |
| Out dimension(mm) | 6000x1510x1600 | 6000x1510x1600 | 4000X2300X2200 |
| Total power(Kw) | 16 | 5.5 | 7.5 |
| Total weight(KG) | 2500 | 1800 | 3500 |
