PP PE waste film two stage granulation line from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)

Product Detail

Model No.: SJ140/140

Production Capacity: 60 set/sets every year

Delivery Date: 45 days from the deposit

Use: Others

Brand Name: shunlida

Material: waste PE PP

Product type: PE granules

screw material: 38CrMoAiA

machine total length: 14m

certification: CE passed

Means of Transport: Ocean

Packing: Wood pallet covered by plas...

Plastic Type: PP/PE

Shaft Design: Single

Power: 120Kw

Processing machine: extruding machine

screw type: single - screw

barrel material: 38CrMoAiA

net-changer method: hydraulic screen changer

capacity: 350kg/h

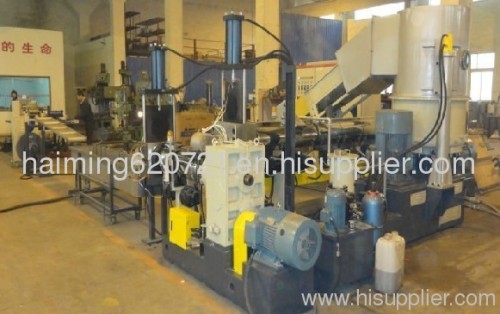

PP PE waste film two stage granulation machine:
1. exhaust type recycle UNIT
2.can be customized
3.meet CE standard
4.high capacity

PP PE waste film two stage granulation machine:

raw material :PP,PE film;
Output :350-450kg/h;
CE certification,ISO9001;
With 18years experience
PE film recycling machine main configuration:

	Item	HXSJ140/140-TR900
Conveying belt	size (width*length)	650*4000mm
	Motor power	0.75kw
main extruder	Screw dia	Ø140mm
	Screw Length	3600mm
	Screw L/D	25:1
	No of exhauxing hole	single
	Material for screw	38CrMoAlA, Nitriding treatment
	Material for barrel	40Cr ,Nitriding treatment
	Gear box	55# gear box
	Main Motor	90kw-4pole
	Heating zone	9zone
	Heating power	55kw
	Heating means	Stainless steel and quartz heater
	Cooling means	Copper tube with circular water
	Mode of mesh changing	Ø280*280mm double hydraulic mesh

	Item	HXSJ140/140-TR900
Second extruder	Screw dia	Ø140mm
	Screw Length	1800mm
	Screw L/D	12:1
	No of exhauxing hole	single
	Material for screw	38CrMoAlA, Nitriding treatment
	Material for barrel	40Cr ,Nitriding treatment
	Gear box	45# gear box
	Main Motor	30kw-4pole
	Heating zone	5zone
	Heating power	33kw
	Heating means	Stainless steel and quartz heater
	Cooling means	Copper tube with circular water
	Mode of mesh changing	Ø280*280mm double hydraulic mesh.
peripherics	Cutter	1.5kw , inverter
	Dewater device	Vertical dewater device,driven power 4kw
	Storage hopper	Equiped with
	Hydraulic drive system	Double valve hydraulic station, power 4kw
Total power		328kw
Out put		350-450kg/h
