plastic ppr cold/hot water supply tube extrusion machinery
1.about product
1.PP-R Cold/
Hot Water Pipe Production Line is mainly used to produce pipes of various diameters and thickness, which are used in various fields such as water supply system, industrial water
conveying system, compressed air transportation, etc. During the developing history, the PP-R pipe is the latest product, has the advantages of low prices, innocuity, non-corrosion, high temperature resistance and convenient to operate, etc.
2.This production line is developed by company on the basis of absorbing the international advanced technology, the important parts of screw and die head are specially designed according to the properties of PP-R material. The electrical control uses frequency control, all the main electric parts are imported famous brand products; the total production line has the advantages of high output, stable quality, small deviation of the products, etc. therefore, it is the first-rate equipment in the
plastic machinery industry. Meanwhile, this production line is suitable to produce the PP-C, PE-X cross-link pipe and the polyolefin pipes. Our company will offer formula, crafts and turn-key project.
Main applications:
This

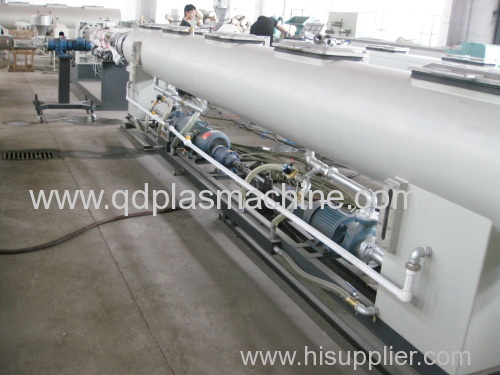

production line is composed of single screw stem extruder, vacuum shaping box, spraying cooling box, drawer, cutter, pilling frame, and also coordinated with different specification of moulds, to produce pressured water-supply, draining, gas, chemical antisepsis pipe materials etc.
PPR pipe which are extruded and produced form our machine has features as follows:
1) The pipe is new environmental friendly product
2) Has the features of sanitation, non-poison, non-rust, heat resistance and long life
3) Mainly used in the fields of
water supply and hot water for warm for resident life and industry
4) Can replace copper pipe and aluminium pipe
5) The machine can be changed to produce PPA/PPC/PP/PE pipe.
Technical Introduction
Firstly, put PP-R material and other assistant material into the mixer and mixing the material symmetrically, then feed into the hopper, at the same time heat extruder and keep the temperature,and the material is melted and plasticizing by
extruder,then extruded by die and head and goes into vacuum calibration tank. and cooling device., then draw-off by draw-off machine, then printing word by ink jet printer, then put into automatic dustness cuter to finish the automatic cut according to pre-kept length and stacking into the shelf. And the qualified product is packed and put into storeroom, and inferior product is crushed and recycled.
This
pipe extrusion machine mainly includes
single screw extruder, molds, vacuum calibrating water tank, spray water cooling tank,
haul-off machine, cutting machine(or winder) and staker.
Main technical parameters
Main technical Parameters: |
TYPE | OD RANGE(mm) | EXRUDER | OUTPUT(kg/h) | INSTALLED POWER(kw) | LINE LENGTH(m) |
PE-63 | 20-63 | SJ65 | 120 | 90 | 35 |
PE-110 | 63-110 | SJ75 | 180 | 180 | 40 |
PE-160 | 75-160 | SJ90 | 250 | 220 | 45 |
