With the suitable screw design and machine configuration,this kind of extrusion equipment is used in many kinds of plastic boards(PP\PE\ABS etc.)

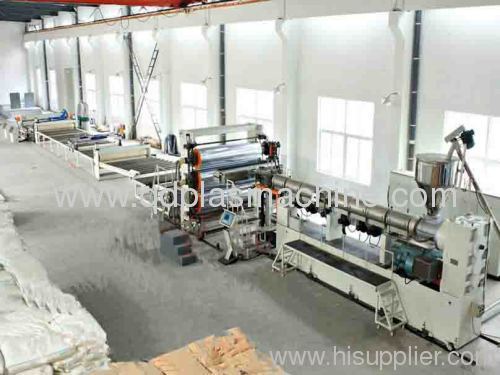

PE(plastic)board extrusion equipment:
Process flow:
Single screw extruder→hydraulic filter→mould→three-roller calender→cooling bracket→edge cutting device→haul-off→transversal cutter→stacker(three roller cooling device,transmission device,length measuring device unit)
The extruder:The special designed
screw and the advanced temperature control system ensure the good plasticization,stable extrusion and high output.
The screen changer and the die:hydraulic screen change ensures the quick course of the exchange the filters.the advanced colthesrack style multi-channel die ensures the
plastic flow evenly distributed to everywhere of the lps of the die.The clearance of the lips of die can be adjusted.This ensures the exact thickness of the sheets.
Roll calender:according to the material properties,There are three styles
calenders:horizontal,inclined and vertical.The 3-rolls's temperatures are separately controlled and the clearance among three rolls can be free-adjusted.Both ensure the excellent calendering
effect,Cooling roll converor,To obtain a gook cooling effect,it adopts suitable cooling rolls and several force blower.
The online slit unit provides nice edges.
Cutting machine:The high grade alloy steel sharp blade and the imported bearing ensure good cutting effect and a constantly stable performance.
The winder:For the four shafts supporting by a torque motor can adjust the tension automatically,it can wind thin sheets even by means of adjusting winding s peed and winding tension.It can set the width of the final sheets with the slit unit.
Features and use of the products :
It is characterized for anti acid ,innocuity, able to be welded, therforming and high usage temperature, good physical performance, it is used for the chemical industrial,fibre,and
machinery equipment.
main technical parameter:
| model | SJ-1500 |
| thickness of production | 1-30mm |
| width of the production | 600-1500mm |
| length of the production | according to the customer's requirementss |
| output | 80-500kg/h |
| diameter of extruder | 65-150mm |
