Offer
plastic extruder machine to extruders PP, PE, PS,
ABS pipe, plate, etc.
1. With the standards of CE and ISO9001-2000;
3. Material of screw and barrel: 38CrMoALA high quality alloy steel; Nitriding treatment; Hardness≥850HV;Nitriding depth: 0.4-0.7mm;
4. Electric appliance control cabinet: Main transducer and feeding transducer made by Taiwan Delta Company. Contact device, Circuit breaker made by Siemens Company;
5. We can produce the parts as your different requirements;
SJ series
single screw plastic extruder Description:
The machine is used in
extruder soft and hard thermoplastic, such as poly viyl chloride(PVC), prlyethylene and iithers. It is used with relevant auxiliary machine(including shaping machine head) to produce several kinds of plastic products for example:
film, pipe, rod, plate, thread, cable insulating layer, hollow product. It is also used for prilling.

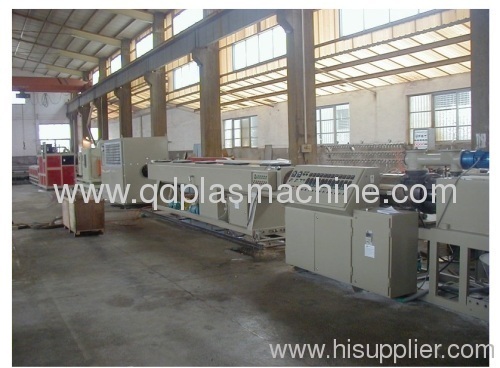

PE PP PVC pipe plastic equipment extrusion line | Model | Screw diameter(mm) | Dia of screw(LD) | Main power(Kw) | Output(kg/h) |
| SJ65x30 | 65 | 30:1 | 30 | 50-100 |
| SJ65X33 | 65 | 33:1 | 45 | 70-150 |
| SJ90x33 | 90 | 33:1 | 90 | 100-200 |
| SJ120x30 | 120 | 120:30 | 110 | 100-300 |
