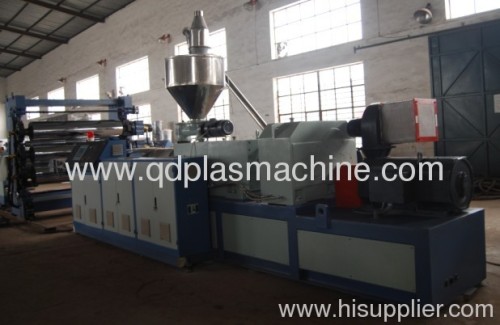

PVC sheet extrusion machine
| Payment Terms: |
T/T,L/C |
| Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
SJSZ51/105
Production Capacity:
60 Set/Sets per Year
Delivery Date:
50working days after receiv...
Use:
Others
Brand Name:
shunlida
capacity:
50-100kg/h
Means of Transport:
Ocean
Packing:
wooden carton or standard p...
Plastic Type:
PVC
Shaft Design:
Double
Power:
22kw
Material of screw and barrel:
38CrMoAlA
The line has been widely used in sheet produce.Features:compact structure, good plasticizing, high yield, long life etc.
The nessesary machine:
| No. | Name | Quantity |
| 1 | conical twin-screw extruder | 1 set |
| 2 | vacuum calibration device | 1 set |
| 3 | tractor | 1 set |
| 4 | cutter | 1 set |
| 5 | turn-over stacker | 1 set |
Technical Parameter:
| Model | SJZ-45 | SJZ-51 | SJZ-55 | SJZ-65 | SJZ-80I | SJZ-80II | SJZ-90 |
| Screw diameter(MM) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 80/172 | 92/188 |
| Max.Rotational speed of screw(rpm) | 34.7 | 34.7 | 34.7 | 34.7 | 25 | 25 | 25 |
| Main motor(KW) | 15 | 18.5 | 22 | 30/37 | 55 | 55 | 110 |
| Capacity(kgs/h) | 60 | 80 | 120 | 220 | 320 | 320 | 600 |
| Capacity(kgs/h) | 1000 | 1000 | 1000 | 1000 | 1100 | 1100 | 1200 |
| Net weight(kg) | 3000 | 3000 | 3500 | 4000 | 5500 | 5500 | 8000 |
| Dimension(LxWxH) | 3.3*1.2*2.1 | 3.6*1.1*2.1 | 3.6*1.1*2.1 | 4.2*1.5*2.4 | 4.7*1.5*2.4 | 4.7*1.5*2.4 | 6*1.6*2. |
Different models will meet your various need,
waiting fou your consultation.
