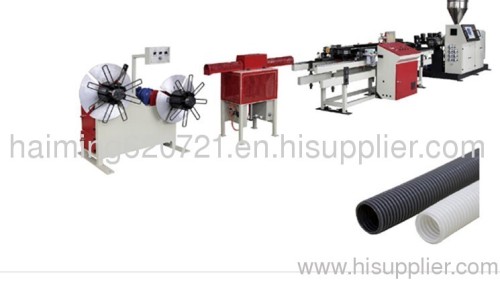

The PVC building wire inserted corrugated pipe production line is made of conveying feeder , plastic extruder ,head die mold , cooling forming unit, cutter and winding machine , chiller and air compressor .
The unit is maily used for producing PE PP PVC single wall corrugated pipes.

Detailed introduction:

This corrugated pipe extrusion line mainly contains Extruder, Corrugated Forming Machine, Mold Blocks, Cooling Equipment, Counting Machine and Winding Machine. It can continuously produce many kinds of diameter single wall corrugated pipe.

1.Extruder: It has high speed high efficiency screw, hard gear surface, top quality inverter. This structure assures the material evenly heating, good plasticization and the extruding speed and efficiency.

2.Corrugator: Close structure. Mold blocks Through the gear transmission, Mold plate has water flowing to get cooling efficiency. The pipe cooling type is wind blowing . This structure ensures High speed production and cooling. It can produce inner and outer layer smooth and corrugation uniformity pipe one time matching the corresponding molds.

3.Cooling and forming system: Corrugated pipes forming unit is closed type structure ,and can supply the vacuum forming.Forming mold is moving forward and backward in a sized tunnel .The sized tunnel is sandwich design, forced to cool molds confirmly by cooling water.The sized mold is made of hard alloy steel , wearing and corrosion resistant, the forming mold don't connect each other to increase the time of chaning the specifications.

4.Mold block: The design of structure is reasonable, wind cooling and replacement of the module is convenient and reliable

5.Winding machine: Moment motor, single/double station winder

technical parameter:

PVC corrugated pipes
