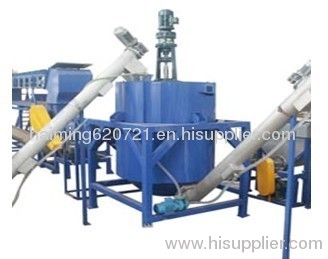

PET bottle flakes Washing line

Payment Terms: T/T,L/C
Place of Origin: Shandong, China (Mainland)
inquire skype
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: SD500
Production Capacity: 5 set/sets every month
Delivery Date: within 45 working days from...
Use: Container / Bottle Cleaning
Brand Name: shunlida
Material Processed: Plastic Bottle
Water supply: Consumption: 12ton/h
Width of belt: 1000mm
Cleaning Process: Cold Water Cleaning
Means of Transport: Ocean
Packing: wooden case(export package)
Plastic Type: PET
Shaft Design: Others
Power: 270Kw
Installation power: 270Kw
Manpower: 10 persons
Cleaning Type: Clean-In-Place (CIP)
Industry Used: plastic recycling

PET bottle flakes Washing line
1.Capacity: 100-2000kg/h
2.Certificate: CE
3.Advantage: Energy-saving, automatic
4.Clean dry

PET bottle flakes Washing line
Capacity: 100-2000kg/h
Certificate: CE, ISO9001
Advantage: Energy-saving, automatic.
Product Description
Pet recycling washing line
Pet bottle recycling machinery
Pet flakes crushing equipment
1, This PET bottle crushing, washing and drying production line can wash and recycle waste PET bottle flakes easily, which includes PE/PP labels, PVC labels, paper labels, HDPE cups, glue, mud, beverage leftover, oil, and scrap iron.
2, Equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
3, the whole production line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products.
4, Coordinating the production line with follow programmed work (granulating system), and it will make waste and dirty PET bottles to be the PET granule material and in order to producing new PET bottles. The material from this equipment can be put into the granulating machine directly.
5, we can supply production line with capacity from 100kg/h to 2000kg/h.
For the more details, please do not hesitate to ask us.
NO

ITEM

DESCRIPTION

SELECTIVITY

1

Prewasher

Remove the solid impurity which are water insoluble, such as hand stone, sand, etc. It can also wash bottles' surface.

Optional

2

Bale Breaker

It is used in large capacity recycling line, and bottles are compressed in bale.

Optional

3

Belt Conveyer

Including the metal detector.

Necessary

4

Label Remover

Label removing efficiency more than 98%

Optional

5

Manual Select Plateform

Made according to workers' height, supply a suitable plate for selecting the left lables or some other impurity.

Optional

6

Belt Conveyer

Conveying the bottles into crusher.

Necessary

7

Crusher

With water, the materials of the blade adopt SKD-II or 9CrSi. It has a function of prewashing too.

Necessary

8

Screw Feeder

Conveying the flakes into friction washer.

Optional

9

Friction Washer

Scrubbing material in high-speed with water.

Optional

10

SCrew Floating Washer

Remove few remand paper, sand, label from material based on different density.

Optional

11

Screw Feeder

Conveying the flakes into hot washer.

Necessary

12

Hot Washer

High temperature stirring washing with caustic soda. Water can be heated by steam or electric.

Necessary
