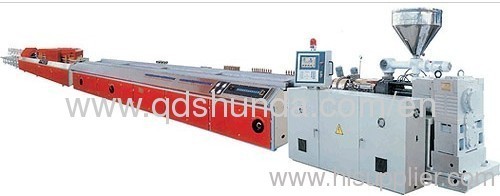

Plastic extruding profile production line
Payment Terms: |
T/T,L/C,WU |
Place of Origin: |
Shandong, China (Mainland) |
Product Detail
Model No.:
SJSZ60*22
Production Capacity:
60 sets every year
Delivery Date:
within 60 working days afte...
Use:
Others
Brand Name:
shunlida
Model Number:
YF180,240,360
Processing type:
Extruding machine
Certification:
CE
screw structure:
twin -screw
capacity:
150-200kg/h
Means of Transport:
Ocean
Packing:
Export packing, covered wit...
Plastic Type:
Others
Shaft Design:
Double
Power:
90Kw
Max. profile width:
1200mm
line speed:
0.5-10m/min
Main motor power:
37Kw
Input material:
PP , PE or PVC
Extruding machine central height:
1000mm
Plastic extruding profile production line
1.According latest technology
2.Optimize design
3.High yield,Long life
This line is the manufacture facilities of PVC plastic profile materials, including window and door series profile, plate, sheet, tiny bubble profile and tiny bubble ornament plate.
The big shape plastic door and window profile production line is developed by Our corporation introduces the advanced technology from abroad, forming a complete system with twin conical screw extruder, it feature high automation degree, smooth work performance, big yield and high efficiency.
Main machine | SJSZ60*22 Single screw extruder/Twin conical screws extruder | SJ-90*25 Single screw extruder/Twin conical screws extruder | SJ-65*30 Single screw extruder/Twin conical screws extruder |
Vacuum forming flat table | SDZ-3200 | SDT-90 | SDT-65 |
Effective length of flat table mm | 3200 | 2800 | 1500 |
Vacuum pump power kw | 3*7.5 | 2*5.5 | 5.5 |
Drawing machine type | SXQ-240 | SLQ-200 | SLQ-200 |
Draw length mm | 300 | 300 | 300 |
Draw velocity m/min | 0.3-3 | 0.3-3 | 0.3-3 |
Draw power kw | 2*1.5 | 2.2 | 1.5 |
Cut power kw | 1.1 | 1.1 | 1.1 |
Cut mode | Pneumatic/ voluntarily | Pneumatic/ voluntarily | Pneumatic/ voluntarily |
Unit weight kg | 8000 | 7000 | 6000 |
Outside dimension m*m*m | 16*2.2*2.9 | 12*2.2*1.9 | 14*1.9*1.9 |
