plastic mixer from China manufacturer - Qingdao Shunlida Plastic Machinery Co., Ltd

Payment Terms:	T/T,L/C,WU
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: SRL series

Production Capacity: 10 sets every month

Delivery Date: 20 days from the deposit

input material: PVC + additives

Mixing type: cooling and heating

Discharging method: pneumatically

electric control: well-known brands

mix time: 8-12min

Means of Transport: Ocean

Packing: Wooden case or film package

Model type: SRL

output material: PVC powder

plastic mixing machine: horizontal mixing machine

Heating method: Electricity stream

plastic mixing unit: plastic mixer

Plastic cold and heating mixier
1. good mixing effect
2.high stability
3.good quality
4, for plastic material

Packaging & Delivery

Packaging Detail:	wooden case
Delivery Detail:	15-30 working days

Specifications

plastic mixing machine used for
feeding, mixing, coloring and
drying of various resins, PVC,
polyethylene and polypropylene

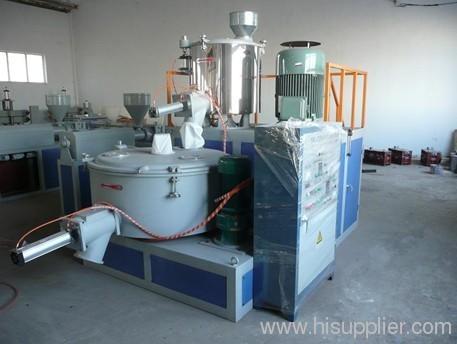

SRL series plastic mixing machine

Feature
Cylinder body made of corrosion-resistant stainless steel .
Vane is made of high strength stainless steel .
Special designed cylinder body does self-cleaning well
The shaft is sealed up by special material sealing and oil-resistant & heat-resistant sealing .
Heating mixer has self-friction . Its heating type is electric or steam heating .
It's not easy for arch cover of cooling mixer to be out of shape .
Materials are well mixed by fast & slow rotation together .
Application
It is mainly used for feeding, mixing, coloring and drying of various resins, polyethylene, polypropylene and PVC, etc. It can dry and volatilize before shaping of engineering plastics such as ABS and polycarbonate, etc. It can be used for mixing phenol aldehyde too.
It combines heating mixing and cooling mixing. Materials after heating mixing go into cooling mixer for cooling automatically. It exhausts remaining gases to avoid agglomerates.

Main Technical Parameter

SRL-Z series

Model	SRL-Z50/100	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total capacity (L)	50/100	100/200	200/500	300/600	500/1000	800/1600
Effective capacity (L)	36/75	75/150	150/375	225/450	375/750	600/1200
Main Shaft Speed (r/min)	625/1250/130	525/1050/100	475/950/80	475/950/80	430/860/60	370/740/50
Type of heating/cooling	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water
Motor Power (kw)	7/11/5.5	14/22/7.5	30/42/11	40/55/11	55/75/15	60/90/18.5

SRL-W series

Model	SRL-W100/400	SRL-W200/800	SRL-W300/1000	SRL-W500/1600	SRL-W800/2500	SRL-W1000/3000
Total capacity (L)	100/400	200/800	300/1000	500/1600	800/2500	1000/3000
Effective capacity (L)	75/300	150/600	225/750	375/1200	600/1800	750/2200
Main Shaft Speed (r/min)	525/1050/130	475/950/100	475/950/80	430/860/80	370/740/60	325/650/50
Type of heating/cooling	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water	Self-friction/ water
Temperature control mode	Automatic	Automatic	Automatic	Automatic	Automatic	Automatic
Unloading mode	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Motor power(kw)	14/22/7.5	30/42/11	40/55/15	47/67/18.5	60/90/22
